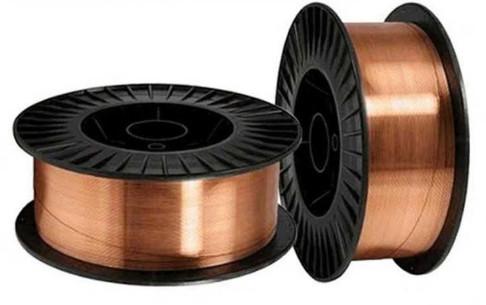

High Strength Steel Mag Welding Solid Wire Shield Gas 1.2mm 0.8mm 0.9mm 15kg

Name: High Strength Steel Mag Welding Solid Wire Shield Gas 12mm 08mm 09mm 15kg
Brand: LONGTENG
Price: 1 USD

Brand Name : LONGTENG

Model Number : ER90S-G (ER60-G)

Certification : TUV CE, ABS, DB, ISO9001

Place of Origin : CHINA

MOQ : one pallet

Price : USD 1

Supply Ability : 1,200,000 TON PER YEAR

Delivery Time : 15 WORKING DAYS

Packaging Details : Neutral box/ LT color box/OEM brand box

Product name : CO2 gas shielded welding wire ER90S-G

Model : ER90S-G

Brand : LONGTENG

Diameter : 0.8/0.9/1.0/1.2/1.6mm

Weight : 1/5/15/20kg

Surface : Copper plating

Spool material : Black plastic spool

Packing : Color box

OEM : Accept

Diameter of spool : 100/200/270/300mm

Contact Now

[High Strength Steel]ER60-G AWS ER90S-G Mag Welding Solid Wire Shield Gas 1.2mm 0.8mm 0.9mm 15kg

LT*ER90S-G 0.8/1.0/1.2/1.6MM GAS-SHIELDED SOLID WELDING WIRE

Persistently earns a good reputation among users in shipbuilding, bridge construction, machinery fabrication, railway-car fabrication, steel structure fabrication due to the outstanding features:
(1) Excellent resistant to shop primer
(2) Excellent usability
(3) Excellent high speed weldability

LT·ER60-G Conform to Standard :GB/T 8110 ER60-G

AWS ER90S-G

Specification:LT.ER60-Gis a kind of 620MPa high toughness low-alloy steel gas-shielded welding wire. It has excellent all-position welding performance.

Purpose:Suitable for welding 620MPa high strength steel structures, such as construction machinery, pipelines, ships, pressure vessels, etc.

Chemical Composition(%)

Chemical Composition	C	Mn	Si	S	P	Mo	Ti	Cu
Guarantee Value	≤0.10	1.40~	0.50~	≤0.025	≤0.025	0.20~	≤0.12	≤0.50
Guarantee Value	≤0.10	1.9	0.95	≤0.025	≤0.025	0.6	≤0.12	≤0.50

Mechanical Properties of Deposited Metal(Ar+20%CO2)

Test Item	R_m(MPa)	R_eL/R_p0.2(MPa)	A(%)	KV₂(J)
Test Item	R_m(MPa)	R_eL/R_p0.2(MPa)	A(%)	-20℃
Guarantee Value	≥620	≥490	≥19	≥47
General Result	660	545	25	103/111/121
